Flame lamination
Efficient bonding of materials with PU foam. Suited to high-volume automotive production.
How it works
Bonding of textile roll goods with no adhesive added. The bond is created by melting PUR foam. The process suits high-volume automotive production.
We produce two-layer and three-layer roll goods that always include PUR foam. The foam is melted by a flame and pressed against the textile roll goods between the lamination rollers. The molten PUR foam serves as the adhesive layer, so no further adhesive enters the flame lamination process.
A single pass through the line allows both sides to be bonded at once. One working step produces a material bonded on both faces, with no need for a second pass.

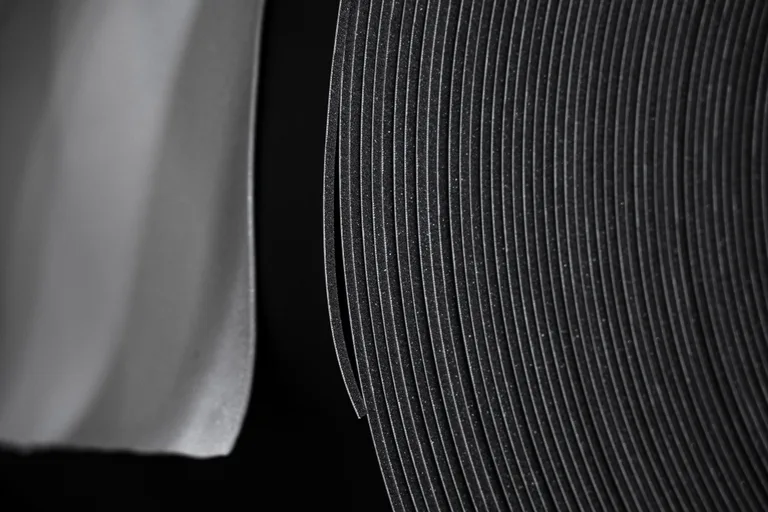

- 01PUR foam enters the line as roll goods
- 02A linear gas burner melts the foam

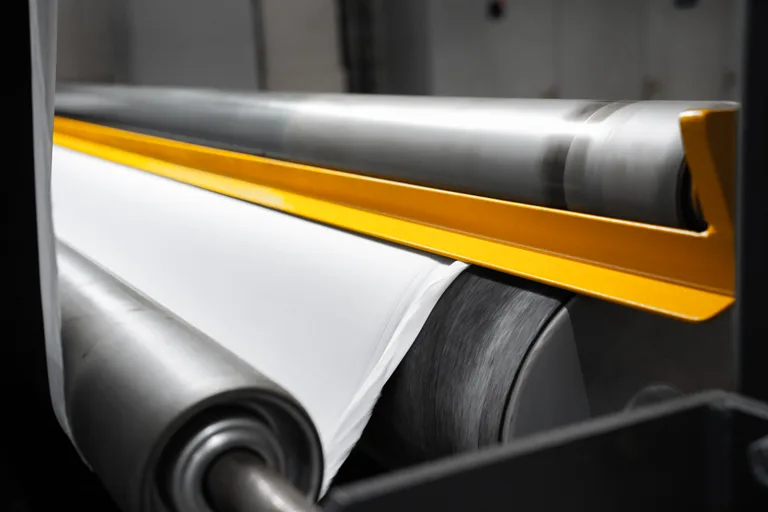

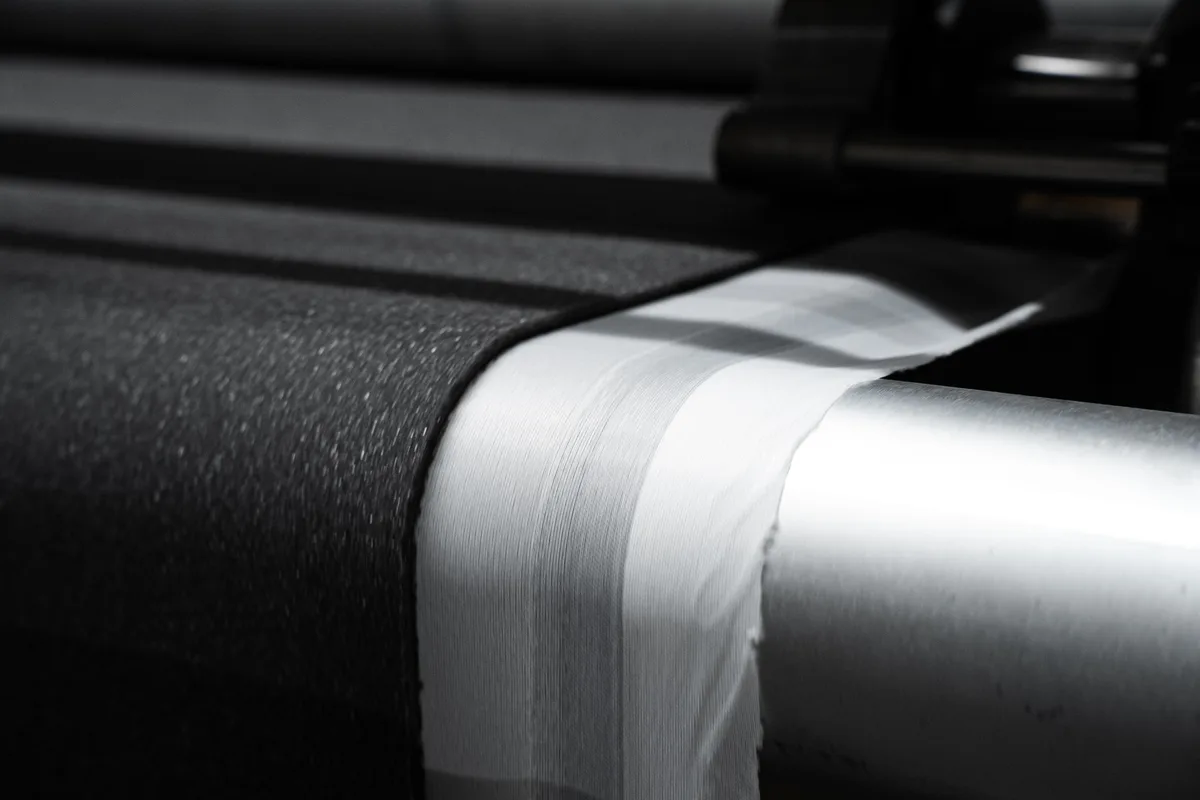

- 03Rollers bond the molten PUR layer to the textile
- 04The bonded material is wound up as finished laminate
Specifications
- WORKING WIDTH
- up to 2,000 mm
- TOTAL THICKNESS
- 15 mm
- LINE SPEED
- up to 30 m/min depending on the material structure and the bond strength required
- LAMINATION
- single-sided or double-sided in one working step
- LAYER BONDING
- adhesive-free, bonding by molten PUR foam
- MICROFIBRE MATERIALS
- Dinamica and Alcantara
- MATERIALS BONDED
- synthetic leather, Dinamica, Alcantara, non-woven fibre layers, textile materials, woven and knitted fabrics
NOT SURE WHICH TECHNOLOGY? GET IN TOUCH
Contact our sales teamSales department
TOMATEX Otrokovice, a.s.
Ing. Hynek Kovář
Sales Director
Types of lamination
We build up the layers according to whether the material is to be visible on one side or on both.

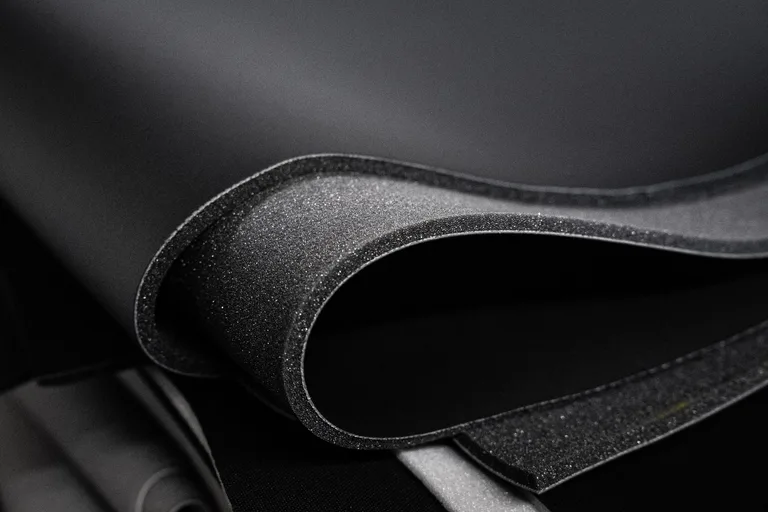

LAYER STRUCTURE — SINGLE-SIDED AND DOUBLE-SIDED LAMINATION
New lamination line since 2025
NEW LAMINATION LINE — IN OPERATION SINCE 2025
- A completely new investment, available since the second quarter of 2025
- A standard machine for continuous operation with linear gas burners
- Additional buffers for face material, backing material, PUR foam and finished laminate eliminate downtime during changeovers.
- Dedicated accumulators and spreaders to increase production capacity

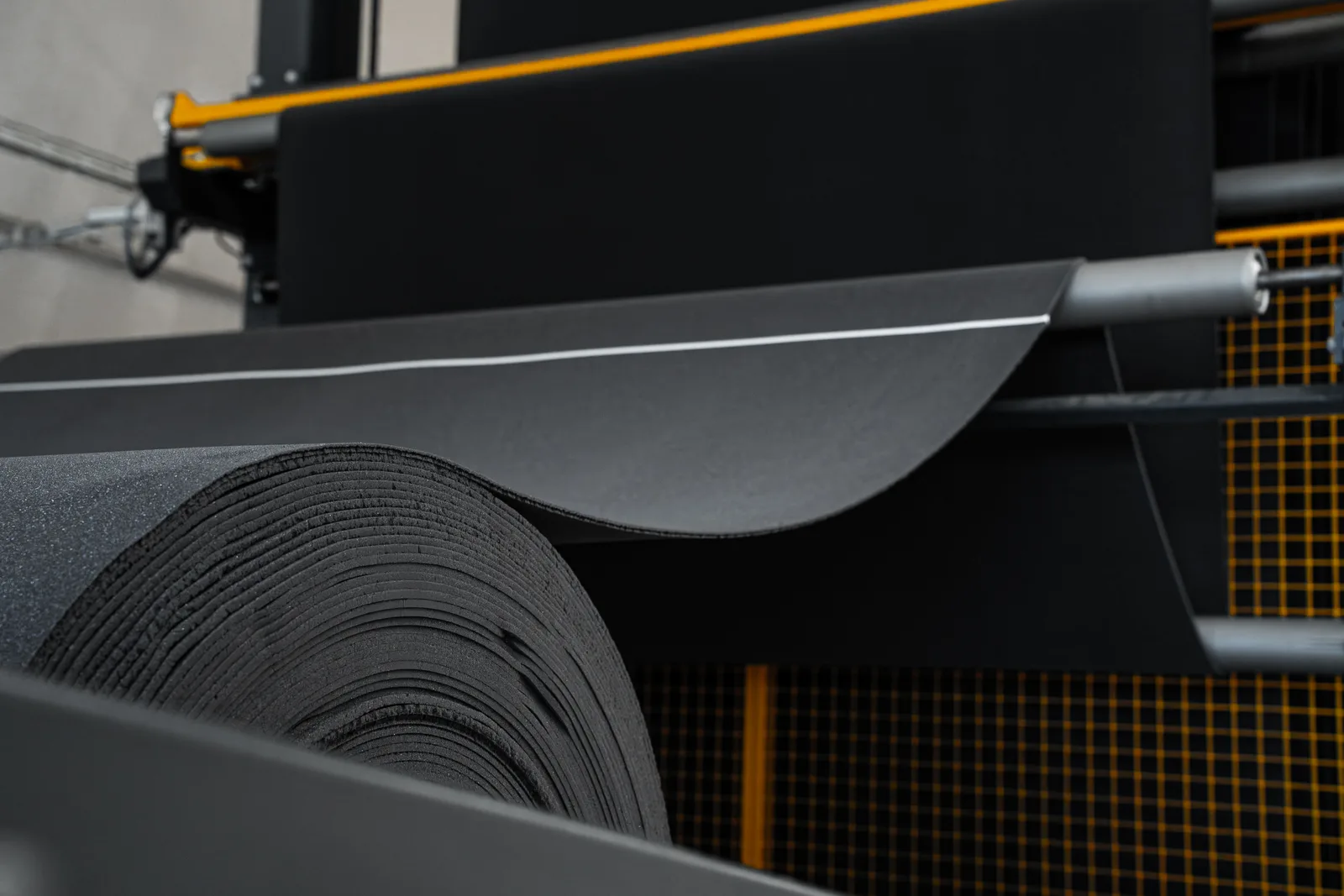

From production
Have a flame lamination job?
Send us the layer structure, the material and the volume. We will come back to you on whether the line can run it and when.
